xcp_d.workflows.execsummary.init_plot_custom_slices_wf
- xcp_d.workflows.execsummary.init_plot_custom_slices_wf(output_dir, desc, name='plot_custom_slices_wf')[source]
Plot a custom selection of slices with Slicer.
This workflow is used to produce subcortical registration plots specifically for infant data.

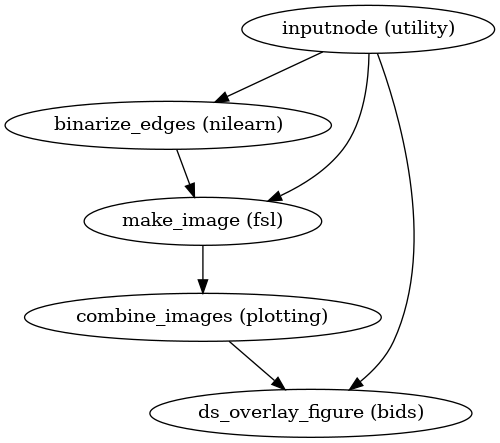

- Workflow Graph
(Source code, png, svg, pdf)
- Parameters:
output_dir (
str) – Path to the output directory forxcp_dderivatives. This should not include thexcp_dfolder. For example, “/path/to/dset/derivatives/”.desc (
str) – String to be used asdescentity in output filename.name (
str, optional) – Name of the workflow. This is used for working directories and workflow graphs. Default is “plot_custom_slices_wf”.
- Inputs:
underlay_file
overlay_file
name_source
